LT型对夹式蝶阀 LT butterfly valve 产品型号:LTD71/371X—16 连接方式 Type of connection:中心型凸耳式Centric lug type
公称通径Nominal diameter:DN50-DN1200mm
公称压力Nominal pressure:PN0.6~PN1.6MPa
适用介质Applicable medium:淡水、海水、空气、t≤70℃的原油、成品油。汽油及70℃≤t <170℃的介质,只能用氟橡胶阀座圈。Fresh water,sea water,air crude oil witht≤70℃,product oil gasoline,and other medium with 70℃≤t <170℃,Only fluororubber seat ring can beused.
适用温度Applicable temperature:-23~121℃ 驱动方式Drive mode:手动、蜗轮、气动、电动、螺旋式,双缸液动式,液手动式 Handle type worm gear type;electrically operated,spiral type;double cylinder hydraulic type;Manual-hydraulic type
支耳式蝶阀|凸耳式蝶阀|手柄凸耳式蝶阀

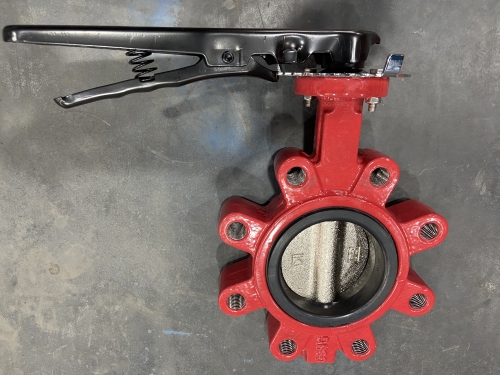

![手柄式LT型蝶阀.JPG](/upload/P4867ca60f58b4a20807d2e81ed1e03a3.jpg)

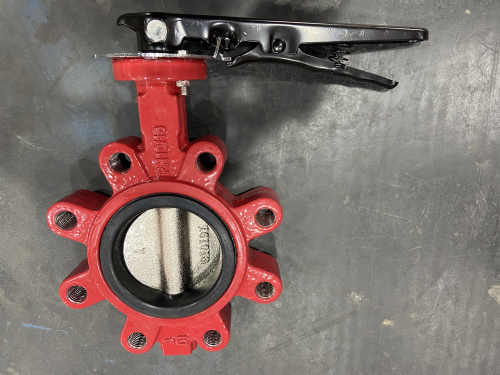

![手柄式LT型蝶阀2.png](/upload/P7b3f62ddd204464ab4b0dcd6386427a6.png)

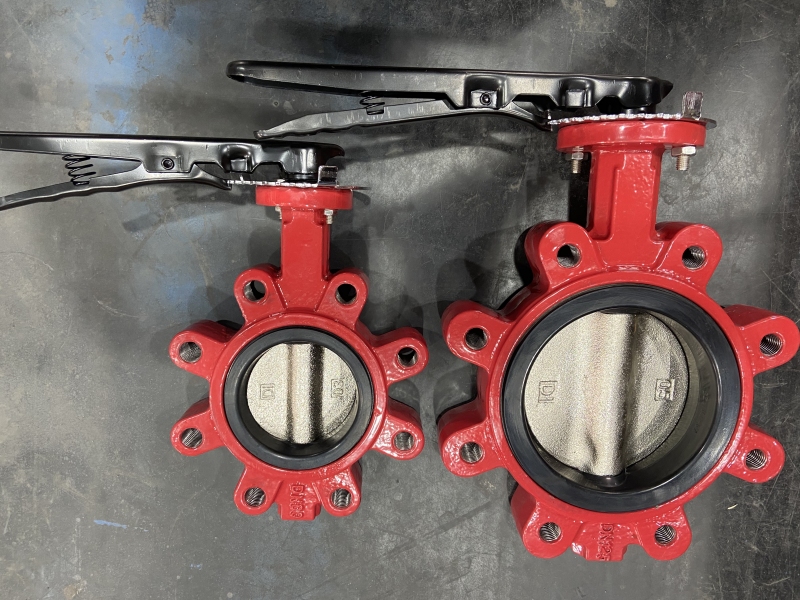

![手柄式LT型蝶阀3.JPG](/upload/P5d2cfba335b14250a6dd01e5fd784702.jpg)

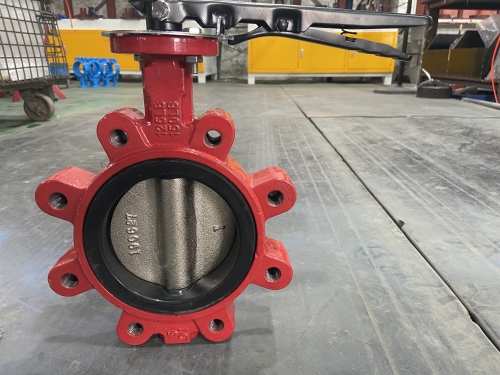

![手柄式LT型蝶阀4.JPG](/upload/P044ebfa9a0434ba9bfad303af85ded0b.jpg)

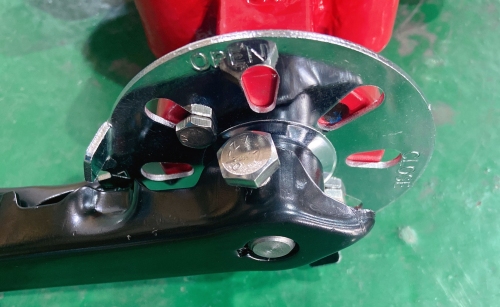

![手柄式LT型蝶阀5.jpg](/upload/Pb80e5fe6a911498fa7930f7020ada7d1.jpg)

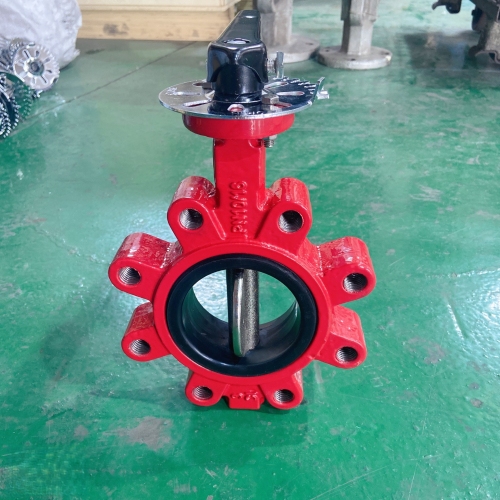

![手柄式LT型蝶阀6 (2).jpg](/upload/Pe7d3de4d880b4cbfac61227e9b9a552a.jpg)

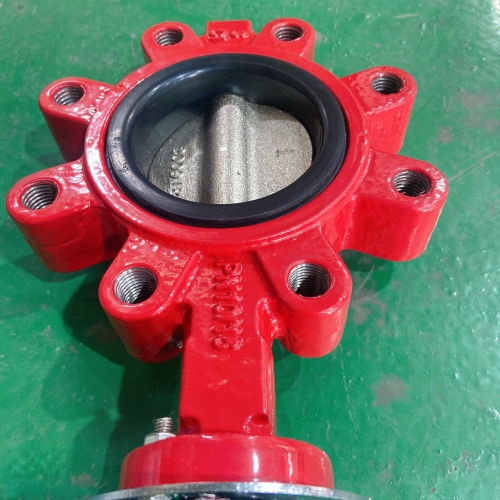

![手柄式LT型蝶阀6.jpg](/upload/P75840f6fa2144bc886eca610815cfeda.jpg)
