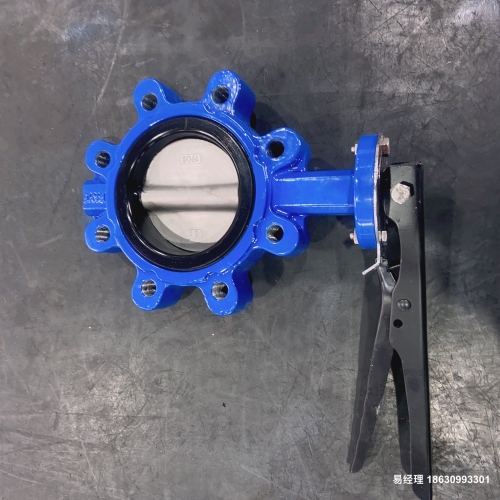

![手柄LT型对夹蝶阀.JPG](/upload/Pa811ec5ff9f44b94ac223d4fb0142dc5.jpg)

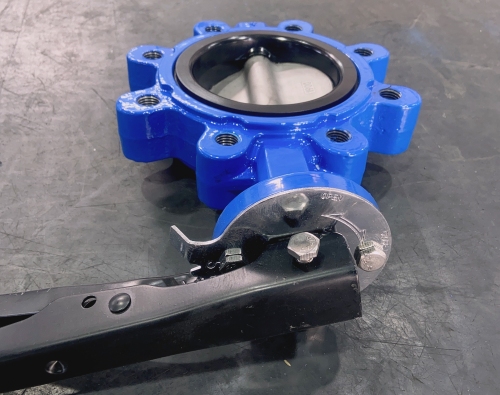

![手柄LT型对夹蝶阀2.JPG](/upload/P8f2680dc5dbc420eb8b1bf4c12fd6852.jpg)

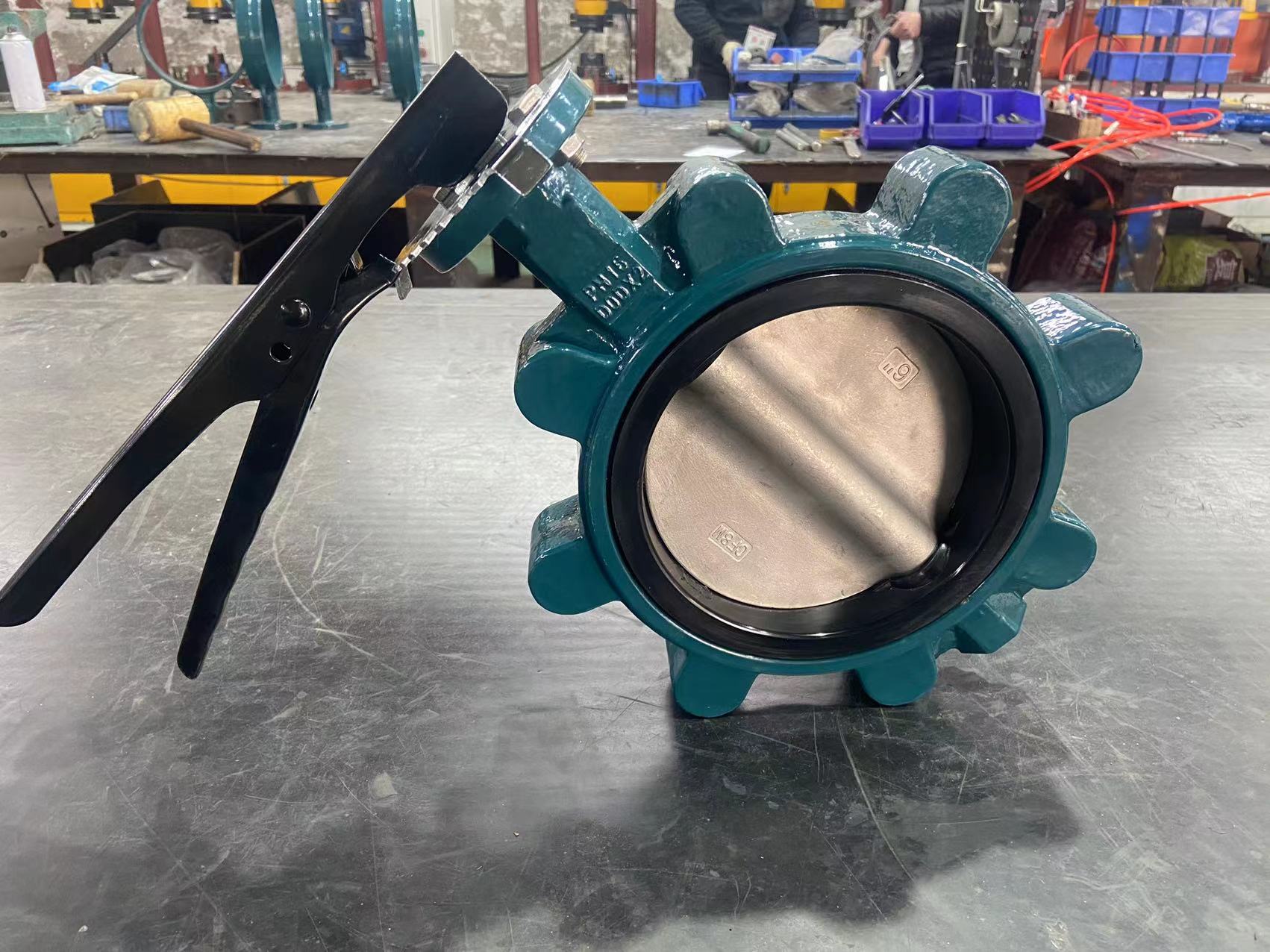

![微信图片_20230313153622.jpg](/upload/Pb49fca9876094c67a52617fb44a57742.jpg)

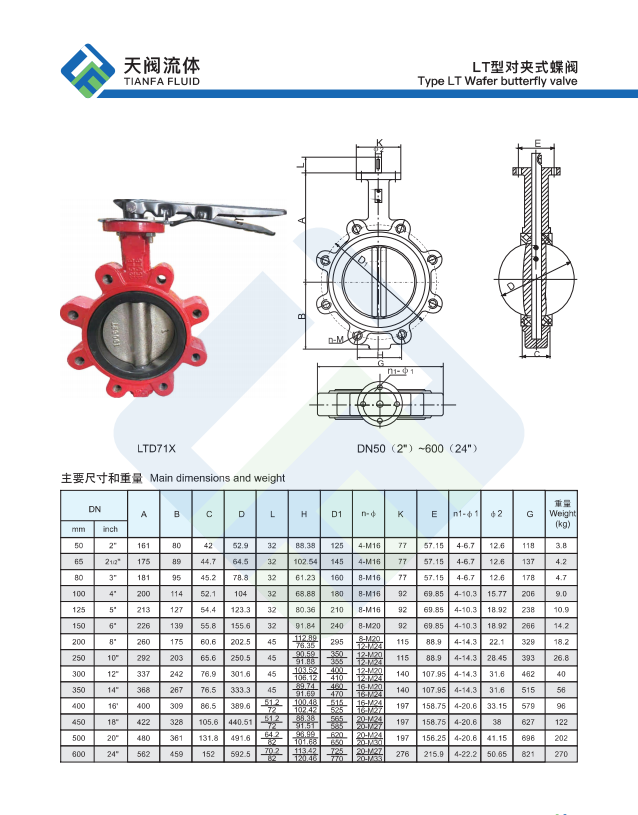

![手柄LT图纸.png](/upload/P56cbf2a418c64423a9607f66a17b3d75.png)
GB/T3036-94中心型法兰式螺旋蝶阀|中心型对夹式螺旋蝶阀|中心型凸耳式螺旋蝶阀|中心型法兰手柄蝶阀|中心型对夹手柄蝶阀|中心型凸耳式手柄蝶阀
LT型对夹式蝶阀 LT butterfly valve 产品型号:LTD71/371X
连接方式 Type of connection:中心型凸耳式Centric lug type
公称通径Nominal diameter:DN50-DN1200mm
公称压力Nominal pressure:PN0.6~PN1.6MPa
适用介质Applicable medium:淡水、海水、空气、t≤70℃的原油、成品油。汽油及70℃≤t <170℃的介质,只能用氟橡胶阀座圈。Fresh water,sea water,air crude oil witht≤70℃,product oil gasoline,and other medium with 70℃≤t <170℃,Only fluororubber seat ring can beused.
适用温度Applicable temperature:-23~121℃ 驱动方式Drive mode:手动、蜗轮、气动、电动、螺旋式,双缸液动式,液手动式 Handle type worm gear type;electrically operated,spiral type;double cylinder hydraulic type;Manual-hydraulic type
